• Sony super-low-light 2M pixel sensor for clear and natural imaging in low-light conditions
• Resolution: (16:9) 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x 240, 320 x 180; (4:3) 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 60, 30, 15fps
• SmartFrame for automatic FOV adjustment to fit all participants
• True WDR up to 120dB: Superb backlight compensation technology for optimizing light balance in high-contrast conditions
• Zoom: 18X total zoom (12X optical zoom)
• Field of view (DFOV): 82°
• Lens focal length: 3.9 mm (wide) ~ 47.3 mm (tele)
• Lens F#: 1.8 (wide) ~ 2.8 (tele)
• Mirror, Flip, AE, white balance: aut o, manual override via PTZApp
• Minimum focus distance: 1.5 m
• Standard tripod screw holes and Kensington slot

• Pan: ±170°
• Tilt: +90° (up) -30° (down)
• 10 camera presets (through remote control)
• Fast and quiet pan & tilt movement

• YUV, MJPEG, H.264
• Network video compression format: H.264
• Network protocols: RTSP, RTMP

• Full duplex microphone array with echo cancellation
• Advanced noise suppression
• Dual-omnidirectional microphone array
• 3.5 mm phone-in jack
• 3.5 mm line out
• Speaker: 6W, Adjustable to 90dB SPL at 0.5 m
• Microphone frequency response: 120Hz–16kHz
• Microphone sensitivity: -34± 2 dBV @1KHz, 94dBSPL
• Microphone distortion: < 1% from 150Hz
• Microphone support range: Diameter 6M
• Touch controls for volume down/up, mute, phone input, call, and hang-up
• Bridge phone-in and USB into one call
• Security: Kensington slot

• AAC-LC
• Network protocol: RTSP, RTMP

• 10/100/1000 Mbps

• 12V/5A power adaptor
• Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain)
• USB 3.1 Type-B connector
• IP (RJ45)

• 3.1 Gen 1 Type-B, backward compatible with USB 2.0
• UVC (USB video class) 1.1
• UAC (USB audio class) 1.0

• IR remote control
• VISCA/Pelco-P/Pelco-D via RS232 (128 preset points via VISCA command)
• Remote side: VISCA over IP, IP (RJ45)
• UVC/UAC plug-and-play
• WebUI: Browser IP access via Chrome (does not support Internet Explorer)
• PTZApp

• Camera wall-mount bracket included
• Optional foldable TV mount

• Windows® 7/10/11
• Mac OS X 14.4 or higher
• Chromebox 3 version 94.0.4606.114 or later

• 3.2 GHz Intel® Core™ i5-4460 Processor or higher
• 4 GB RAM or more
• USB 3.1 port, backward compatible with USB 2.0 port

• Chrome: version 76.x or above
• Firefox: version 69 or above
• IE: Not support

• AC 100V ~ 240V, 50/60 Hz
• Consumption: 12V, 5A

• Remotely group FW/SW upgrades, control the camera, and configure settings

PTZApp

• Upgrade firmware automatically or manually
• Control camera
• Set parameters and adjust camera image
• Diagnose operating status
• View live video

EZLive

• Real-time streaming / annotating / snapshots / video recording

• Operation temperature: 0°C ~ 40°C
• Operation humidity: 20% ~ 80%
• Storage temperature: -20°C ~ 60°C
• Storage humidity: 20% ~ 80%

• Package dimensions: 259 x 259 x 349 mm
• Package weight: 5.4 kg
• Camera: 142.7 x 153 x 182 mm/1.45 kg
• Speakerphone: 220 x 181.5 x 49.5 mm/0.85 kg
• Remote control: 200 x 50 x 21 mm/0.09 kg

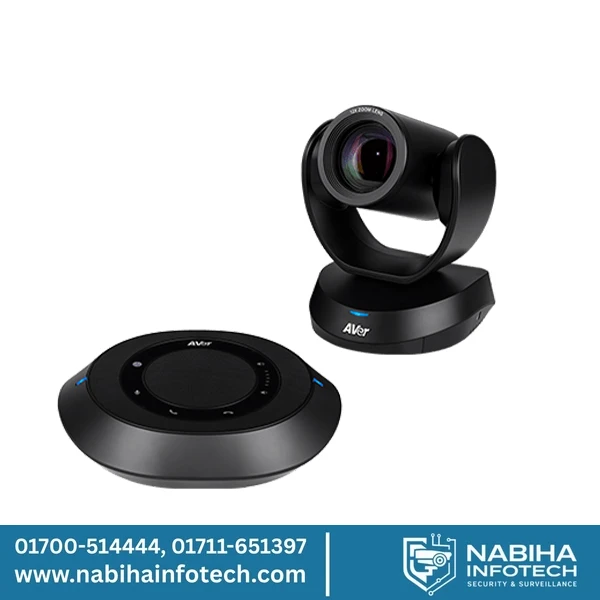

• VC520 Pro Camera
• VC520 Pro Speakerphone
• Remote control
• Power adapter
• Power cord (6 ft/1.8 m)
• USB 3.1 Type-B to Type-A cable (10 ft/3 m)
• CATE6 speakerphone cable (33 ft/10 m)
• 3.5 mm aux cable (3 ft/0.9 m)
• Quick-start guide
• Warranty card
• Wall-mount bracket
• ¼” tripod screw

• Mini DIN9 to RS232 adapter
• Expansion Speakerphone (10 m cable included, daisy-chain up to three speakerphones)
• Expansion Pair Microphone (Two 5 m cables included, daisy-chain up to four microphones)
• Foldable TV mount

• Camera / Speakerphone: 3+2 years (not available in US, JP, and certainother areas)
• Accessories: 1 year

* Please register online to receive a free 2-year warranty extension.
For detailed warranty information, please contact an AVer representative.

• Zoom, Microsoft® Teams, Skype for Business, Skype, Google Hangouts meet, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect™, Cisco Webex®, Fuze, GoToMeeting™, Microsoft® Lync™, Vidyo, vMix, WebRTC, Wirecast, XSplit

* Specifications may vary depending on countries and are subject to change without notice.
