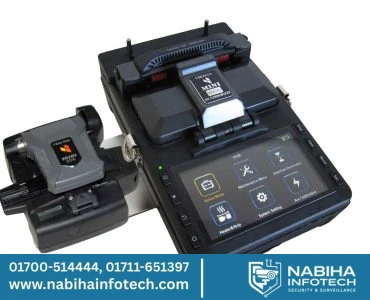

FiberFox Mini 100CA+ | 4-in-One Splicer strips, cleaves and splices
Key Features :
প্রযুক্তি পণ্যের অস্থিতিশীল বাজার পরিস্থিতির কারণে যে কোন সময় মূল্য পরিবর্তন হতে পারে। হেল্পলাইন নাম্বারে কল দিয়ে পণ্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেওয়ার অনুরোধ রইল
Product Video
Specification
| Product Specifications | ||
|
Hardware | Connection | Bluetooth Low Energy (BLE) |
| Data Output | USB C-type | |
| Electrode Life Span | >5,500 arcs | |
| Data Storage | 10,000 splicer record/2000 splice image | |
| Battery | Li-ion 11.1V 3500mAh 200 cycles (Splicing & Heating) 130 cycles (Splicing & Heating & Auto stripping) | |
| Power Supply | AC 100-240V input or DC 12.6V-1.8A | |
| Monitor | Colour 4.3” LCD monitor, with Touch Screen (Tempered Glass) | |
| Cameras | Dual CCD camera with LED emitting system | |
| Illumination | LED Spot Light | |
| Fibre Display | X/Y (single image) 260x X&Y (dual image) 130x | |
| Weight | 1 .3kg (with battery : 1 .6kg) : Without cleaver 1.6kg (with battery : 1.8kg): With cleaver | |
| Size | 203 x 131 x 78mm (L x W x H): without cleaver 203 x 215 x 78mm (L x W x H) : with cleaver | |
|
Reliability | Wind Protection | Wind speed: 15m/s (max) |
| Operating Environment | Altitude: 0-5,000m Temperature: -10-50’C Humidity: 0-95%RH | |
| Storage Condition | Temperature: -20 to 60°C Humidity: 0-95%RH Battery -20~40°C | |
| Pull Test | 1.96-2.25N (standard) | |
Description
The Mini 100CA+ 4-in-One Splicer strips, cleaves and splices – all in one machine! An core alignment splicer, one-click cleaver and auto-stripper all in one.
| Product Specifications | ||
|
Splicing | Method | Core Alignment (DCID: Digitalized Core Image Detecting system) |
| Average Loss | IL : SM(0.02dB) / MM(0.01dB) / DS(0.04dB) / NZDS(0.04dB) / G.657(0.02dB) | |
| Return Loss | >60dB | |
| Time | SM Mode : 10 Sec. / Quick mode : 6 Sec. | |
| Mode | 32 modes (Pre-set: 5 / User set-up: 27) | |
| Attenuation | Available rage : 0.1 – 20dB | |
|
Applicable Fibre Cable |
Fibre Type | SM(ITU-T G652&T G.657) MM(ITU-T G.651) DS(ITU-T G.653) NZDS(ITU-T G.655) |
| Cleaved Length | Coating Diameter < 0.25mm = 5-16mm Coating Diameter > 0.25mm = 8-16mm | |
| Coating Diameter | 100-3000 um | |
| Cladding Diameter | 80-150 um | |
|
Heating | Mode | 32 modes (pre-set 5/user set-up 27) |
| Time | Average 10s | |
| Protection Sleeve | 20-60mm | |
|
Stripper | Type | Full Automatic built-in modular (ATS: Automatic Thermal Stripper) |
| Applicable Cable | 250Um ~ 900Um | |
Product Information
1. FiberFox Mini 100CA+ | 4-in-One Splicer strips, cleaves and splices price in Bangladesh?
FiberFox FiberFox Mini 100CA+ price in Bangladesh is 0 BDT Available: in-Stock. For any information please call 01407555777. Buy at best Price from Nabiha infotech.
2. FiberFox FiberFox Mini 100CA+ বাংলাদেশে দাম/মূল্য কত?
FiberFox FiberFox Mini 100CA+ বাংলাদেশে দাম/ মূল্য 0 BDT . সবচেয়ে কম-দামে অরিজিনাল FiberFox FiberFox Mini 100CA+ কিনতে আজই Nabiha infotech -তে যোগাযোগ করুন। বিশ্বস্ত সরবরাহকারী হিসেবে Nabiha infotech মানসম্মত পণ্য, দ্রুত ডেলিভারি, নির্ভরযোগ্য বিক্রয়োত্তর সেবা নিশ্চিত করে গ্রাহক সন্তুষ্টি প্রদান করে।
3. FiberFox FiberFox Mini 100CA+ বাংলাদেশে কোথায় পাওয়া যায় ?
বাংলাদেশে FiberFox Mini 100CA+ পন্যের বিশ্বস্ত ও নির্ভরযোগ্য সরবরাহকারী Nabiha infotech. মানসম্মত দামে অরিজিনাল FiberFox FiberFox Mini 100CA+ পন্য Nabiha infotech থেকে সহজেই সংগ্রহ করা যায়। অনলাইন ও অফলাইন সেবা, দ্রুত ডেলিভারি সুবিধা পাওয়া যায়।
4. Who is the best Supplier of FiberFox FiberFox Mini 100CA+ in Bangladesh?
Nabiha infotech is the Best Supplier of FiberFox Mini 100CA+ in Bangladesh. offering genuine products, a Competitive pricing, reliable Service, Fast delivery and trusted Customer Support All over Bangladesh.
FiberFox Mini 100CA+ | 4-in-One Splicer strips, cleaves and splices Price in Bangladesh 2026
| Price | ৳ 0 |
| Brand | FiberFox |
| Product Model | FiberFox Mini 100CA+ |
| Status | In Stock |
| Hotline | 01700514444, 01407555777 |
