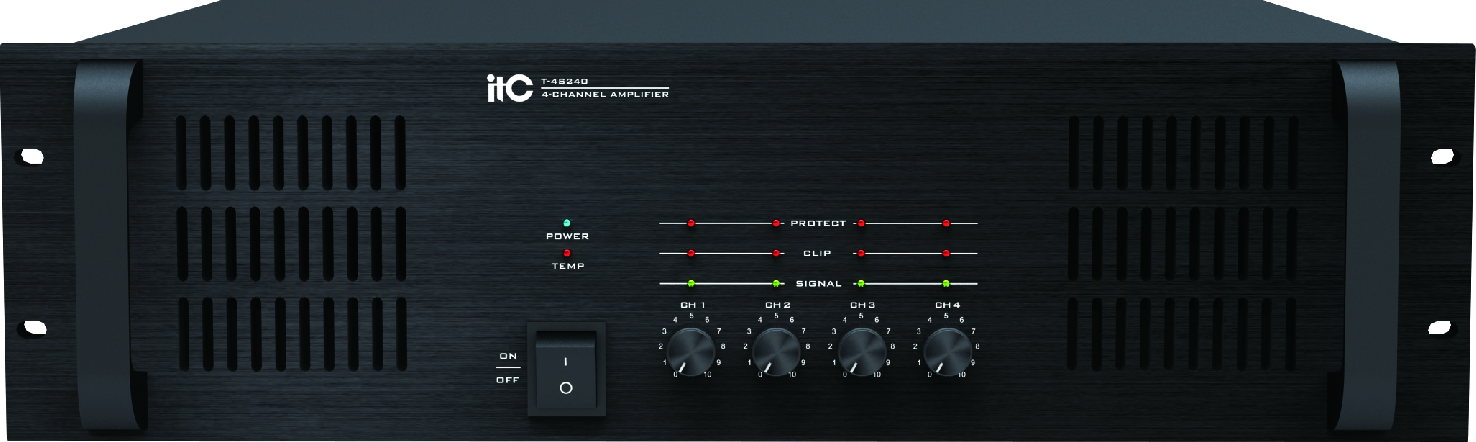

ITC T-4S240 RMS 4×240W Four Channel Power Amplifier, 100V/70V/4ohms

Call for Price

Call for Stock

ITC T-4S240 Bangladesh

The 4 channel power amplifiers are designed for commercial and industrial public address

applications . With four separate amplifier in a single chassis and rated power ranges from

60W, 120W and 240W per channel which provides a wide selection to meet different size

sound system needs. The amplifier is design of rack mount type and T-4S60/T-4S120 are in

2U height while T-4S240 is in 3U height.

Balanced line inputs by phone jack, 70V, 100V and 4-16ohm speaker outputs for each channel

by phoenix types are convenient for installation when selection different speaker matching.

Master volume controls for each control are included. Complete protection includes over heat,

over load, clip & short circuit. Indications for power, signal, peak and protection.



* 4 separate amplifier into one chassis

* Rack mount amplifier in 2U( T-4S60/T-4S120) and 3U(T-4S240) types

* Rated power from 60W, 120W to 240W per channel

* 70V, 100V and 4-16ohm speaker outputs for each channel by phoenix types

* Isolated transformer for human safety operation

* Balanced phone jack type line input for each channel

* Reliable protection of over heat, over load, clip & short circuit

* Indications for power, signal, peak, and protection

* Excellent device of radiator cooling fanner that ensures working effectively

Optional

* DC 24V input available on less than but not included 240W models

ITC T-4S240 Bangladesh

Product ModelT-4S60T-4S120T-4S240
THDLess than 0.5% at 1KHz, 1/3 rated power
S/N Ratio>90dB
Frequency Response50Hz~16KHz (+1dB, -3dB)
Overload Electromotive Force>15dB
Input Sensitivity & Impedance775mV/10KΩ, Balanced phone jack type
Speaker Outputs70V, 100V & 4~16Ω
Rated Power Output4x60W4x120W4x240W
Power Supply~110V-230V 50/60Hz
Power Consumption400W720W1500W
Weight17.62Kg21.86Kg30Kg
Dimensions484 x 448 x 88mm484 x 449 x 132mm484 x 448 x 88mm
FinishPanel: aluminum plate, blackCase: SPCC Panel
ProtectionOver heat, over load, clip & short circuit
CoolingFan automatically start up when temp reaches 55 ℃
Crosstalk<50dB
