P-6112 P-6124 P-60W P-60M Multi-function Matrix PA System

Brands: DSPPA

Model : P-6112/ P-6124

Status : In Stock

Key Features :

● Multi-zone amplifier with independent source control for each zone, equipped with a 4.3-inch resistive touch screen and push-button power switch.
● Supports 100V constant-voltage output, configurable through the system.
● Chime function can be operated through the touch screen, with customizable chime and alarm sounds via USB.
● Alarm function can be triggered via dry contacts (2P of the 7P Phoenix 3.81mm connector) on the rear panel.
● Bass and treble adjustment available for AUX1, AUX2, MIC1/LINE1, and MIC2/LINE2 (rear panel).
● Equipped with 2 XLR input connectors for MIC1/LINE1 and MIC2/LINE2, selectable between 48V phantom-powered MIC, standard MIC, or LINE input via independent DIP switches.
● 2 RCA input connectors for AUX1 and AUX2 (rear panel).
● Zone monitoring function, with monitoring volume synchronized with the zone volume.
● Priority Level:
● MUTE > EMC IN > ALARM > CHIME > Remote Paging Mic > Remote Paging Mic Override AUX/MP3 > Bluetooth Touch Panel > AUX1 = AUX2 = MIC1/LINE1 = MIC2/LINE2 = MP3 = BT = FM
● 6 LINE OUT (RCA) output connectors corresponding to each channel.
● 6 Bluetooth wall panel interfaces with fixed zone addresses, DC 48V power supply, transmission distance up to 300–600 meters per channel.
● Allows control of audio source and volume of the corresponding zone only through the Bluetooth panel.
● 2 RJ-45 remote paging microphone interfaces, supporting paging to specific zones or all zones.
● Up to 6 paging microphones can be connected in cascade.
● Powered by DC 48V, with transmission distance up to 300–600 meters per channel.
● Allows control of AUX1 or MP3 playback for all zones and adjustment of the audio source volume via the paging microphone.
● 1 Phoenix 3.81mm connector (1P/7P) for FM antenna.
● 1 Phoenix 3.81mm connector (2P/7P) for EMC IN.
● 1 Phoenix 3.81mm connector (2 pins of 7 pins) for Mute.
● 1 Phoenix 3.81mm connector for monitor speaker output, linked to zone volume.
● 6 two-pin 5.08mm terminal block power output interfaces.
● Independent Bluetooth antenna.
● Designed for AC 220–240V power supply.

Sale Price :

৳ 0

- +

01700514444 01407555777

01407555777 01700514444

প্রযুক্তি পণ্যের অস্থিতিশীল বাজার পরিস্থিতির কারণে যে কোন সময় মূল্য পরিবর্তন হতে পারে। হেল্পলাইন নাম্বারে কল দিয়ে পণ্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেওয়ার অনুরোধ রইল

Video
Specification
Description
FAQ
Reviews (0)

Product Video

Specification


Description

P-6112 P-6124 P-60W P-60M Multi-function Matrix PA System

Name: P-6112 P-6124 P-60W P-60M Multi-function Matrix PA System
Brand: DSPPA
Availability: InStock

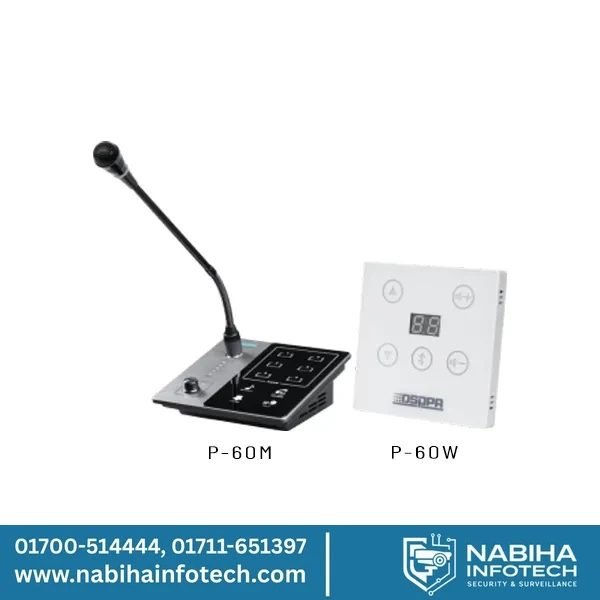

The P-6112 P-6124 P-60M P-60W multi-function matrix public address system is a newly designed and highly integrated audio matrix host system. This new system not only features an 8 × 6 signal matrix but also includes multimedia playback capabilities. It incorporates a six-channel output design that supports 100V constant voltage output. Additionally, it supports the P-60M remote paging microphone with a glass panel touch button design and the P-60W Bluetooth touch panel, both as expansion peripherals. The multi-function matrix PA hosts P-6112 and P-6124 are specified at 6 × 120W and 6 × 240W, respectively, both designed with a 2U chassis. The high degree of integration in these devices helps save space and reduce wiring complexity. They come with a comprehensive set of logical interfaces and a well-defined priority system, making them suitable for most small to medium-sized broadcast system applications. Additionally, they can be integrated with other systems for enhanced functionality.
