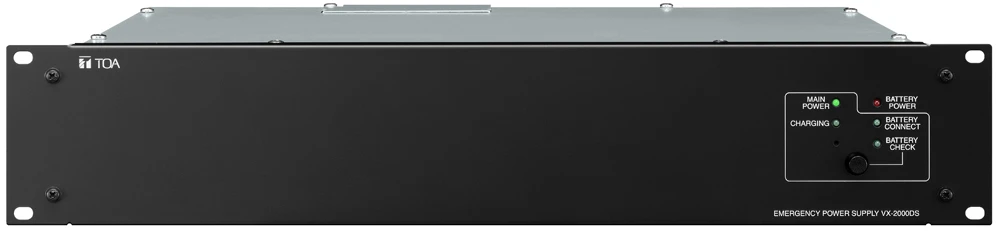

Name: TOA VX-2000DS 301H Emergency Power Supply – EN54-4 Certified 24V DC Battery Manager
Brand: TOA
Availability: InStock

TOA VX-2000DS 301H Emergency Power Supply – EN54-4 Certified 24V DC Battery Manager

Brands: TOA

Model : VX-2000DS

Status : In Stock

Key Features :

The VX-2000DS Emergency Power Supply Unit supplies the DC power to each equipment in the SX-2000 system by connecting the VX-200PS Power Supply Unit. It keeps the battery unit that contains 2 × 12 V sealed lead batteries charged compensating for the temperature of the battery charging voltage. When the DC power supply from the VX-200PS stops, the VX-2000DS is automatically switched to the backup battery.

Sale Price :

৳ 0

- +

01700514444 01407555777

01407555777 01700514444

প্রযুক্তি পণ্যের অস্থিতিশীল বাজার পরিস্থিতির কারণে যে কোন সময় মূল্য পরিবর্তন হতে পারে। হেল্পলাইন নাম্বারে কল দিয়ে পণ্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেওয়ার অনুরোধ রইল

Video
Specification
Description
FAQ
Reviews (0)

Product Video

Specification

Power Source	230 V AC, 50/60 Hz
Power Consumption	240 W max.
Applicable Battery	Panasonic LC-X1265PG/APG (65 Ah)
Charging Method	Trickle charging
Charging Current	5 A max.
Charging Output Voltage	27.3 V ±0.3 V (at 25 ℃ (77 ゜F)) Temperature correction coefficient: -40 mV/℃
Power Supply Input	6 M4 screw terminal, distance between barriers: 11 mm (0.43")
DC Power Output	6 (25 A max. each) M4 screw terminal, distance between barriers: 11 mm (0.43")
Control Connector	RJ45 female connector for connecting the VX-2000SF Surveillance Frame. Twisted-pair straight cable (TIA/EIA-568A standard) Type of control signal: Battery check, AC power status, DC power status, charging circuit failure, and battery failure
Battery Connection	1 pair of positive and negative terminals Applicable cable diameter: AWG 6 - AWG 0 (1/0) (Line resistance within 4 mΩ/total) 2 Cross sectional area: 16 - 50 mm
Operating Temperature	0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Finish	Panel: Surface-treated steel plate, black, 30 % gloss, paint
Dimensions	482 (W) × 88.4 (H) × 377.6 (D) mm (18.98" × 3.48" × 14.87")
Weight	10.5 kg (23.15 lb)
Accessory	Rack mounting screw …4, Fiber washer …4, Blade fuse (40 A) …3, Fuse (T3.15A L) …1, Power cord (2 m (6.56 ft)) …1, Insulating sheet …1, Attention label (German) …1, Fastener hook …4, Fastener loop …4 Sticker (Declaration of compliance) …1, Thermal insulating sheet …1
Fuse Rating	Blade fuse (40 A), Blade fuse (7.5 A), Fuse (T3.15A)
Internal Resistance	Maximum internal resistance of the battery and its associated circuitry, Ri max: 50 mΩ
Current Specification	Maximum output current draw from the battery: 43.5 A Rated maximum continuous output current, I max a: 43.5 A Rated maximum short duration output current, I max b: 43.5 A Rated minimum output current, I min: 0 A
Cable Specification	Recommended cable parameter for DS-SF Link: Twisted-pair straight cable (TIA/EIA-568A standard)

Description

TOA VX-2000DS 301H Emergency Power Supply – EN54-4 Certified 24V DC Battery Manager

The TOA VX-2000DS (301H Version) is the intelligent power manager for the VX-2000 and SX-2000 series. While the VX-200PS modules we discussed earlier generate the raw DC power, the VX-2000DS acts as the "Traffic Controller" and "Battery Guardian.
