Name: TOA WS-5325H UHF Wireless Headset Microphone Set | Hands-Free Clarity
Brand: TOA
Availability: InStock

TOA WS-5325H UHF Wireless Headset Microphone Set | Hands-Free Clarity

Brands: TOA

Model : WS-5325H

Status : In Stock

Key Features :

Company Origin: Japan
Assembling: Taiwan
16-Channel Diversity Tuner
64-Channel Transmiter
Headset Microphone

Sale Price :

৳ 0

- +

01407555777 01700514444

প্রযুক্তি পণ্যের অস্থিতিশীল বাজার পরিস্থিতির কারণে যে কোন সময় মূল্য পরিবর্তন হতে পারে। হেল্পলাইন নাম্বারে কল দিয়ে পণ্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেওয়ার অনুরোধ রইল

Video
Specification
Description
FAQ
Reviews (0)

Product Video

Specification

Description

TOA WS-5325H UHF Wireless Headset Microphone Set | Hands-Free Clarity

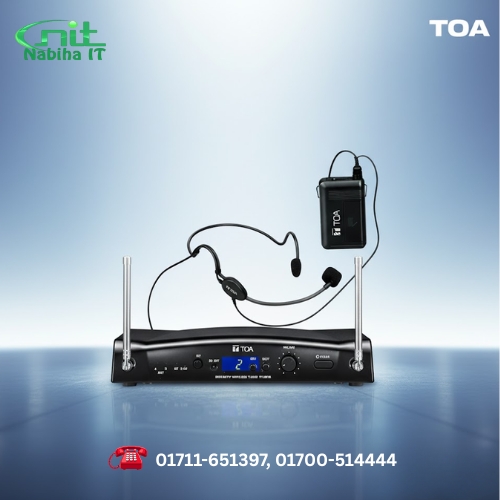

The WS-5325H includes a wireless transmitter WM-5325, a headset microphone WH-4000H, and a diversity wireless tuner WT-5810. The WM-5325 wireless transmitter has been manufactured for use with a UHF system. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radio signal transmission. The WH-4000H employs an electret condenser microphone element and has been designed for use in speech reinforcement applications. The WT-5810 is a PLL-synthesizer controlled double superhetrodyne diversity tuner designed to be used with a UHF wireless system. It employs a compander noise reduction circuit to minimize the influence of ambient RF noise.

PRODUCT COMPOSITION	Wireless transmitter WM-5325 …1, Headset microphone WH-4000H, …1, Diversity wireless tuner WT-5810 …1
FREQUENCY RANGE	576 – 865 MHz (*1), UHF
TONE FREQUENCY	32.768 kHz
OPERATING TEMPERATURE	-10 ℃ to +50 ℃ (14 ゜F to 122 ゜F)
ACCESSORY	AC adapter (*2) …1, Screw driver …1, Strage case …1, Neck strap …1

Wireless transmitter

(*3) 0 dB = 1 V

MODULATION	Frequency modulation
CHANNEL SELECTABLE	64 channels (the number of channels may differ from country to country)
RF CARRIER POWER	Less than 50 mW (Factory preset 10 mW ERP)
OSCILLATOR	PLL synthesized
MAXIMUM INPUT LEVEL	-14 dB to -29 dB (*3) (Audio level control: Min. to Max.)
BATTERY	WB-2000 (WB-2000-2 contains 2 pieces) rechargeable battery (option) or AA alkaline dry cell battery
BATTERY LIFE	Approx. 13 h (when the WB-2000 rechargeable battery is used) Approx. 10 h (when the alkaline battery is used)
INDICATOR	Power/Battery lamps
ANTENNA	Built-in type
FINISH	Resin, coating
DIMENSIONS	62 (W) × 102.5 (H) × 23 (D) mm (2.44 × 4.04″ × 0.91″)
WEIGHT	90 g (0.2 lb) (with battery)

Headset microphone

(*3) 0 dB = 1 V

MICROPHONE ELEMENT	Electret condenser type: Unidirectional
SENSITIVITY	-66 dB ±3 dB (0 dB = 1 V/0.1 Pa, 1 kHz)
CORD LENGTH	1.3 m (4.27 ft)
FINISH	Frame: Stainless, black (silicon rubber), Gooseneck: Black (shrink tube)
WEIGHT	50 g (0.11 lb) (cable included)

Diversity wireless tuner

(*3) 0 dB = 1 V

POWER SOURCE	AC mains (supplied AC adapter must be used)
POWER CONSUMPTION	130 mA (12 V DC)
CHANNEL SELECTABLE	16 channels
RECEIVING SYSTEM	Double super-heterodyne
DIVERSITY SYSTEM	Space diversity
MIXING OUTPUT	MIC: -60 dB (3), 600 Ω, balanced, XLR-3-32 type connector LINE: -20 dB (3), 600 Ω, unbalanced, phone jack
MIXING INPUT	-20 dB (*3), 10 kΩ, unbalanced, phone jack
ANTENNA	Whip antenna
RECEIVING SENSITIVITY	90 dB or more, Signal to Noise ratio (20 dBμV input, 40 kHz deviation)
SQUELCH SENSITIVITY	16 – 40 dBμV variable
SQUELCH SYSTEM	Using together of noise SQ, carrier SQ and tone SQ
INDICATOR	ANT A/B, Audio (peak), Battery alarm, Channel number
CHANNEL CHECK	Usable frequencies scanning
SIGNAL TO NOISE RATIO	104 dB or more (A-weight, unbalanced output)
HARMONIC DISTORTION	1 % or less (typical)
FREQUENCY RESPONSE	100 Hz – 15 kHz, ±3 dB
FINISH	Resin, black
DIMENSIONS	206 (W) × 40.6 (H) × 152.7 (D) mm (8.11 × 1.6″ × 6.01″) (excluding antenna)
