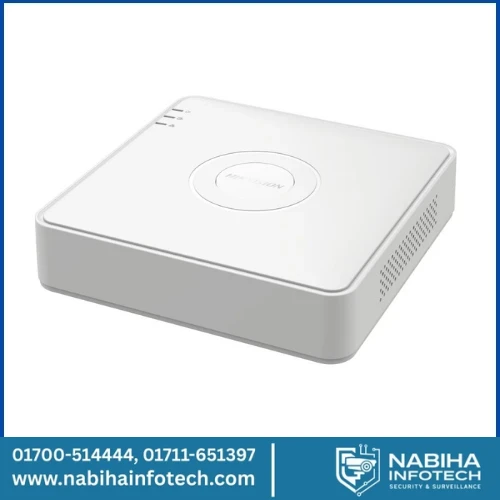

Hikvision iDS-7108HQHI-M1/T 8-ch 1080P Mini 1U H.265 AcuSense DVR

• Deep learning based human and vehicle targets classification of Motion Detection 2.0
• Deep learning-based perimeter protection
• H.265 Pro+/H.265 Pro/H.265 video compression
• HDTVI/AHD/CVI/CVBS/IP video inputs
• Audio via coaxial cable
• Up to 12-ch IP camera inputs (up to 6 MP)
• Encoding ability up to 3K/5M Lite @ 12 fps

• Motion Detection 2.0
• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

• Facial Detection
• Facial Detection and CaptureFace picture detection, face picture search

• Video and Audio
• IP Video Input

  2-ch (up to 10-ch)



  Enhanced IP mode on:

  4-ch (up to 12-ch), each up to 4 Mbps

  Up to 6 MP resolution

  Support H.265+/H.265/H.264+/H.264 IP cameras



• Analog Video Input

  8-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDTVI Input3K(2960 x 1665)@25/20 fps, 3K(3328x1504)@20fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 2K(2304 x 1296)@20 fps, 1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
• AHD Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• HDCVI Input3K(2880 × 1620)@20/25 fps, 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• CVBS InputPAL/NTSC
• HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output ModeHDMI/VGA simultaneous output
• Audio Input1-ch(up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous Playback8-ch

• Recording
• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution

  When 1080p Lite mode is not enabled:

  2K/3K lite/5 MP lite/4 MP lite/3MP/1080p/720p/VGA/WD1/4CIF/CIF;

  When 1080p Lite mode is enabled:

  2K/3K lite/5 MP lite/4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF

• Frame Rate

  Main stream:

  When 1080p Lite mode not enabled:

  For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

  For 3 MP stream access: 3 MP@10fps;1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

  For 2K stream access: 2K@10fps;1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  When 1080p Lite mode enabled:

  3K lite/5 MP lite@12fps;4 MP lite@15fps;3 MP/2K@10fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  Sub-stream:

  WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

• Video Bitrate32 Kbps to 6 Mbps
• Dual-streamSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps

• Network
• Total Bandwidth96 Mbps
• Remote Connection64
• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF,ISUP
• Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface

• Auxiliary Interface
• SATA1 SATA interface
• CapacityUp to 10 TB capacity for each disk
• Alarm In/OutN/A (optional to support)
• USB InterfaceReal panel: 2 × USB 2.0

• General
• Power Supply12 VDC, 1.5 A
• Consumption≤ 12 W (without HDD)
• Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)
• ≤ 1 kg (without HDD, 2.2 lb.)
